Elitron 135307 Oscillating Knife Blade
Elitron 8MCLMA135307 135307 Oscillating Knife Blade Blades for CAD/CAM systems Klingen für CAD/CAM-Systeme Lames pour systèmes CAD/CAM Лезвия для систем CAD/CAM Ostrza do systemów CAD/CAM Čepele pro CAD/CAM systémy Lame pentru sisteme CAD/CAM
Request A Quote
Elitron 135307 Oscillating Knife Blade

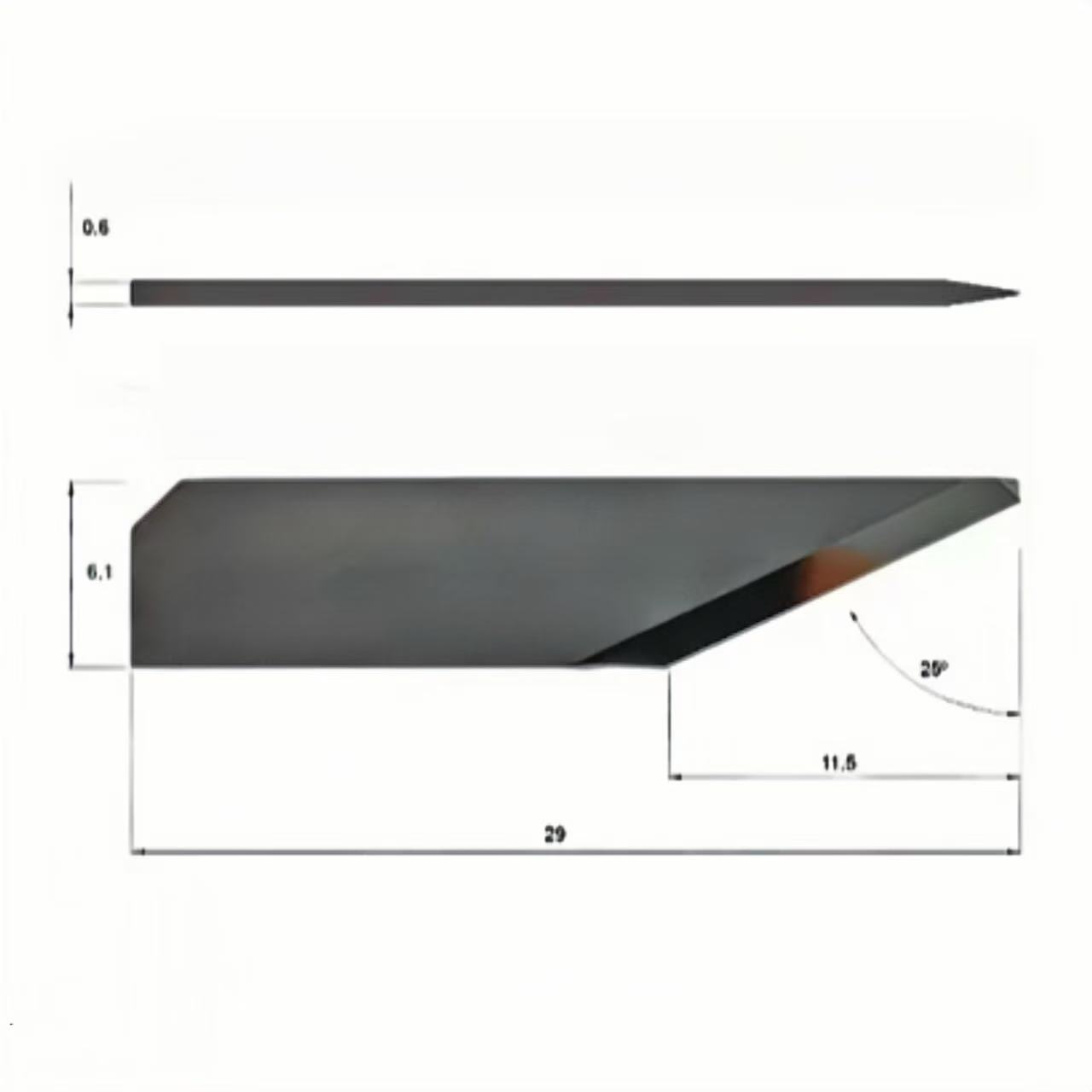

25°KNIFE HEIGHT
29,00 mm
KNIFE WIDTH
6,10 mm
THICKNESS
0,60 mm
MAX. CUTTING DEPTH
11,50 mm
KNIFE/BLADE MOUNTING
flat 0,6 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Folding Carton, Leather

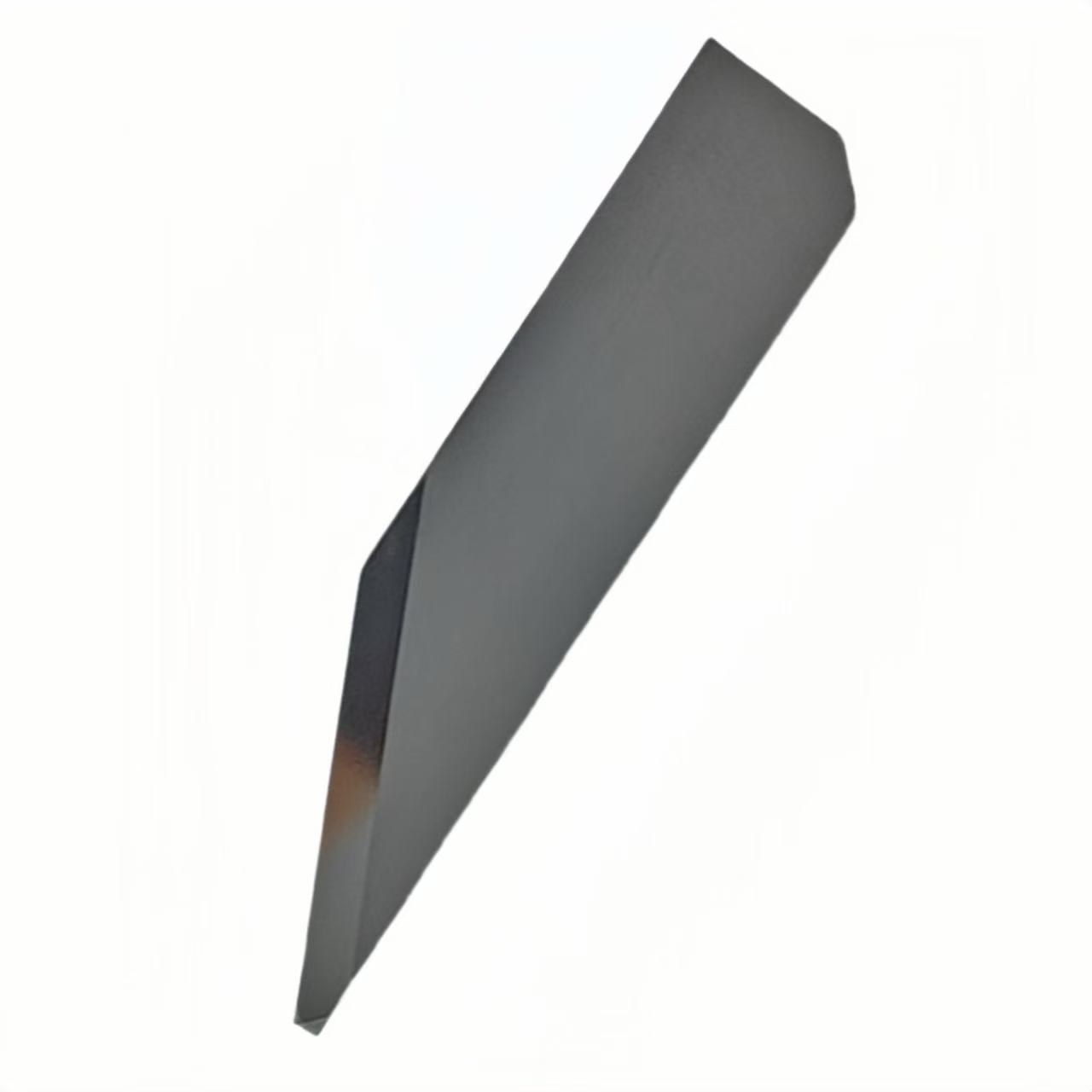

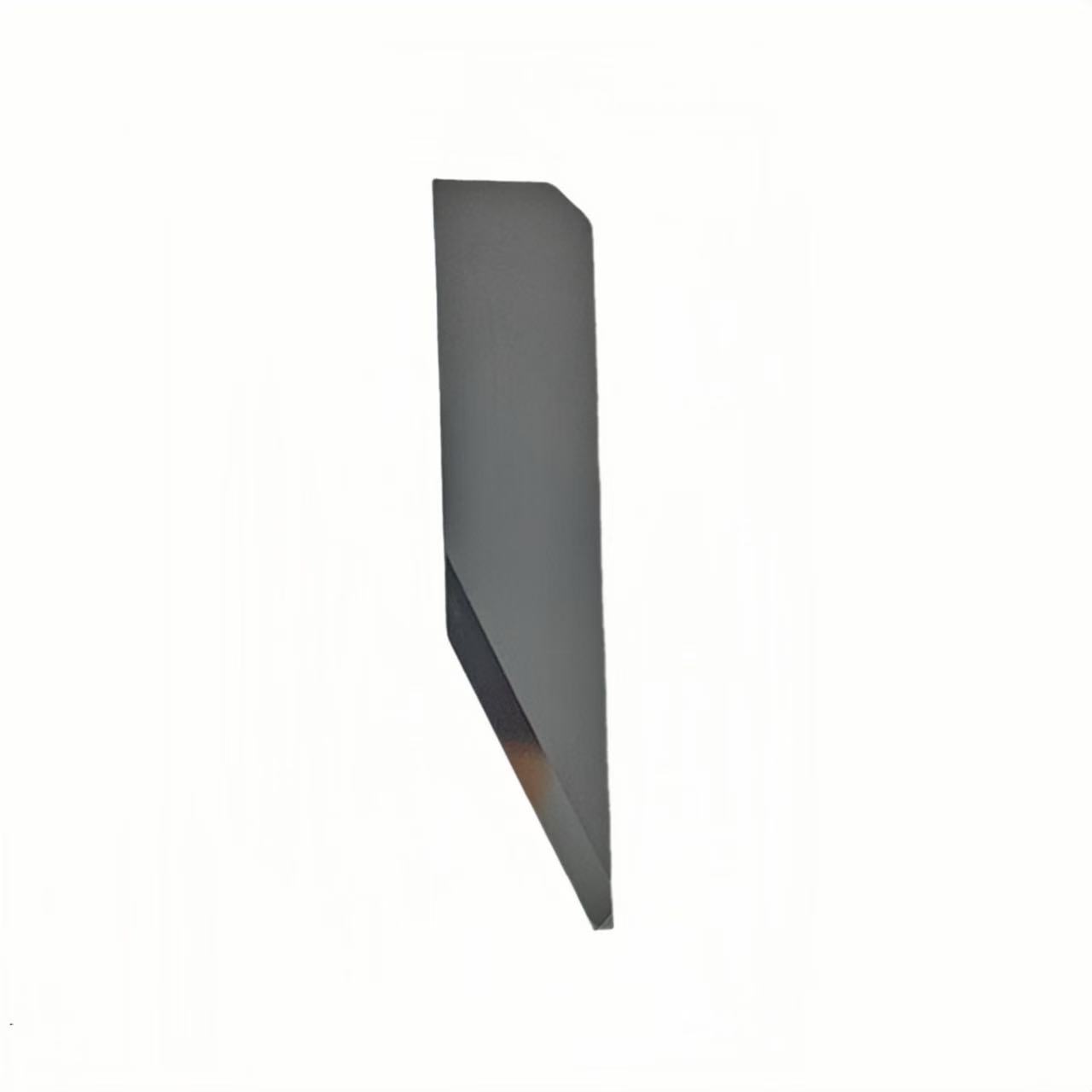

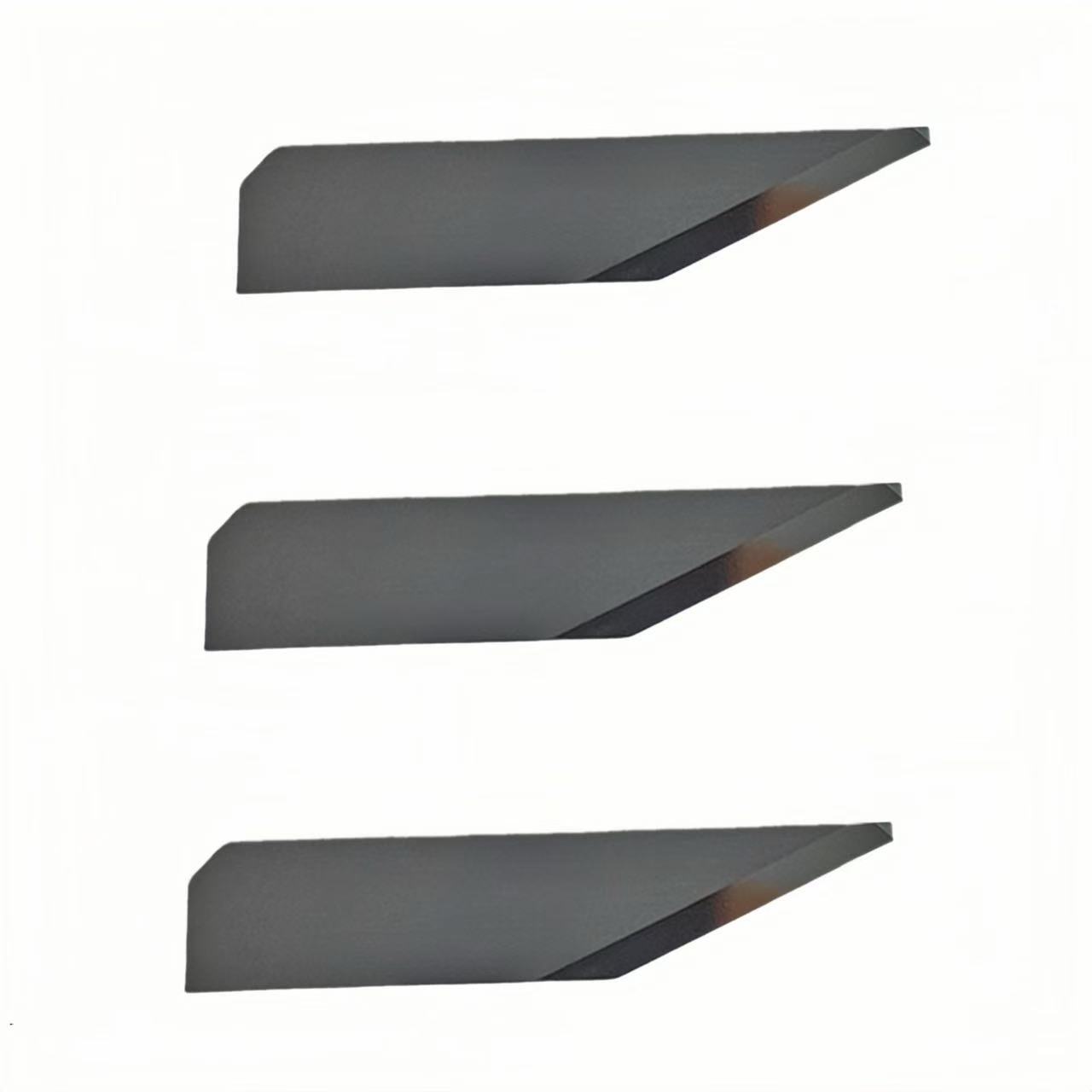

Improve your cutting accuracy with the Elitron 135307 Carbide Oscillating Blade. This high-quality flat oscillating blade is designed to provide superior performance on materials such as folding carton and leather. It features a 25° cutting angle, 29mm height and 6.10mm width, a 0.60mm thickness and a maximum cutting depth of 11.50mm. The flat 0.6mm mounting ensures a secure connection and stable cutting. Ideal for industrial applications, the Elitron 135307 delivers clean, accurate cuts with durability and reliability. Compatible with Elitron cutting systems, it is ideal for achieving high-quality cuts.
25°KNIFE HEIGHT
29,00 mm
KNIFE WIDTH
6,10 mm
THICKNESS
0,60 mm
MAX. CUTTING DEPTH
11,50 mm
KNIFE/BLADE MOUNTING
flat 0,6 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Folding Carton, Leather
Improve your cutting accuracy with the Elitron 135307 Carbide Oscillating Blade. This high-quality flat oscillating blade is designed to provide superior performance on materials such as folding carton and leather. It features a 25° cutting angle, 29mm height and 6.10mm width, a 0.60mm thickness and a maximum cutting depth of 11.50mm. The flat 0.6mm mounting ensures a secure connection and stable cutting. Ideal for industrial applications, the Elitron 135307 delivers clean, accurate cuts with durability and reliability. Compatible with Elitron cutting systems, it is ideal for achieving high-quality cuts.
