Esko Kongsberg Bld-Dr8160 Carbide Knife Blade G42447235
China MAISI Blades supplies Esko Kongsberg carbide inserts and milling cutters, production, manufacturing, wholesale, sales Amazon Alibaba AliExpress store unit price catalog sales list pdf
Request A Quote

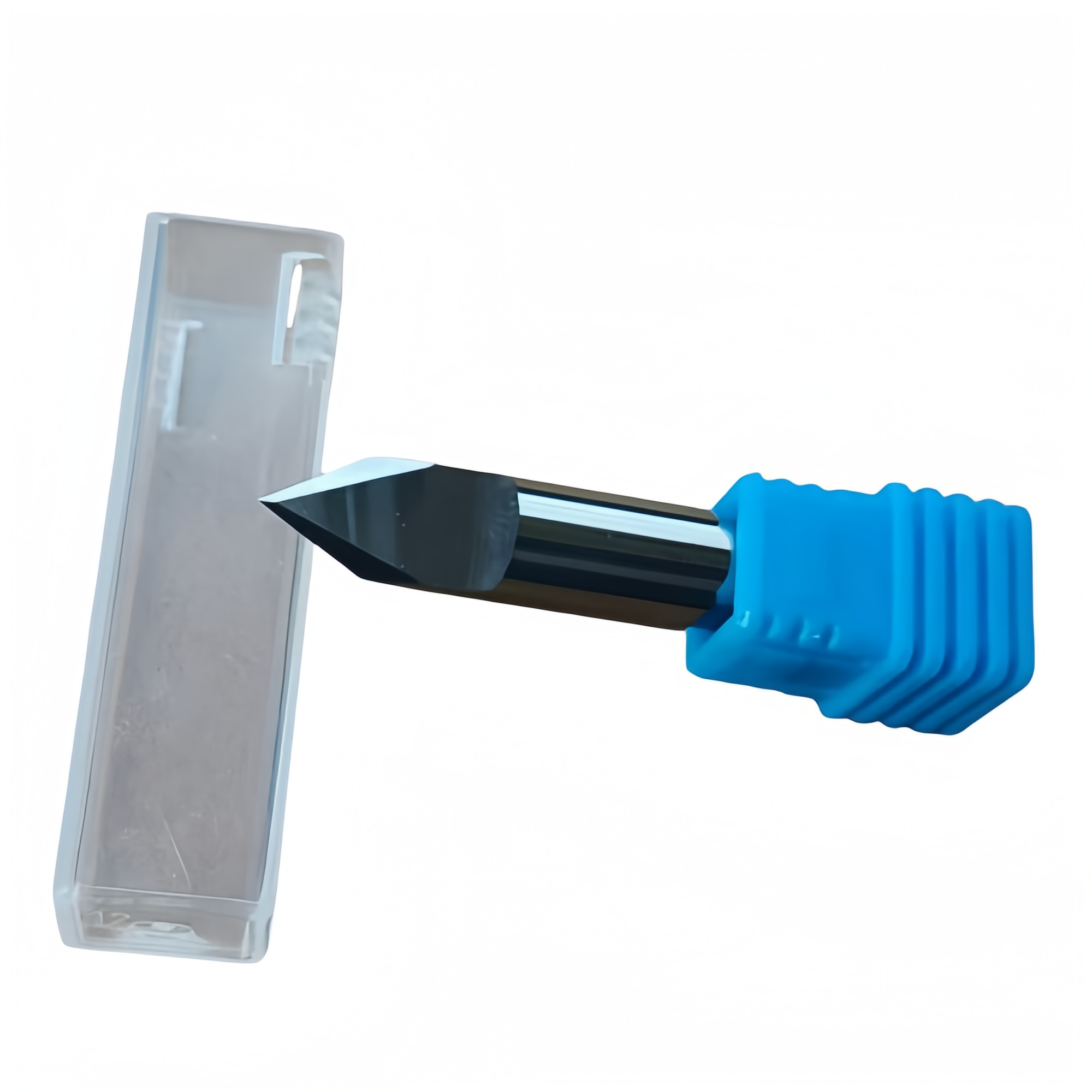

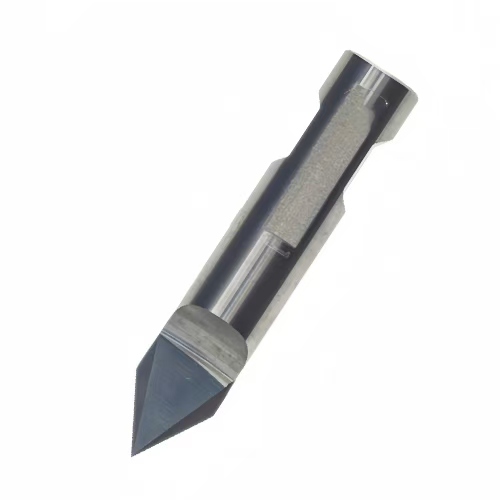

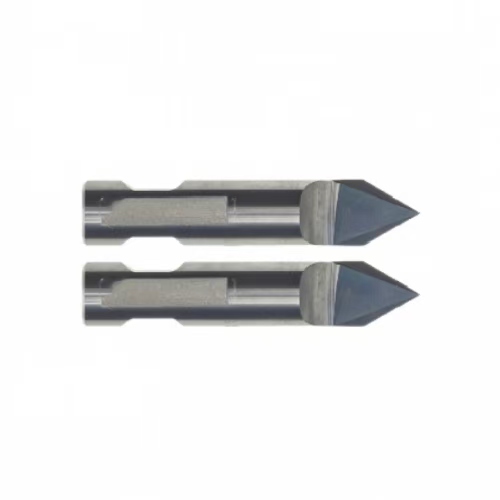

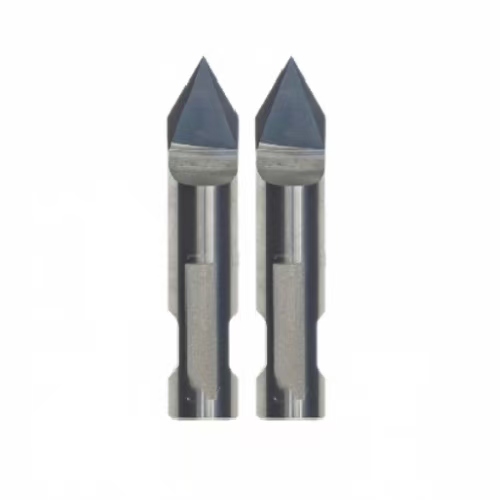

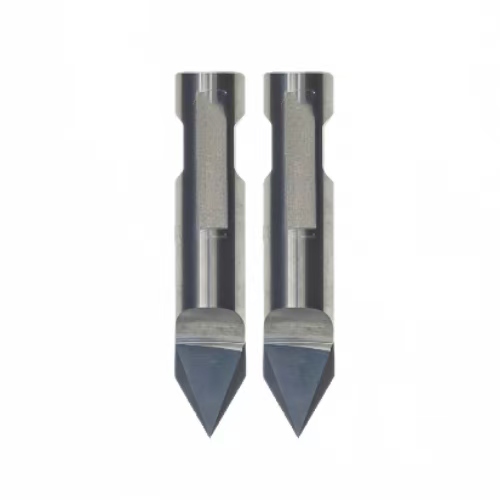

Esko Kongsberg Bld-Dr8160 Carbide Knife Blade G42447235

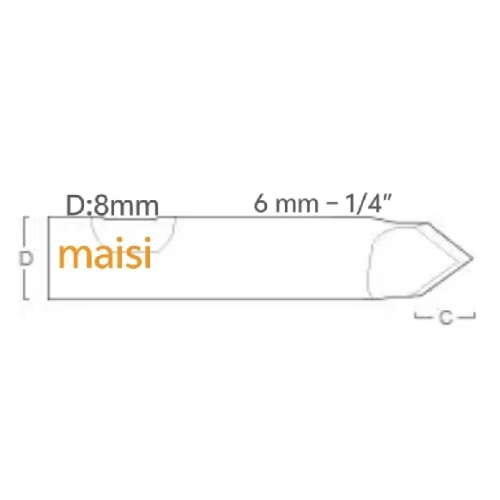

Shank Diameter 8 mm

Max. Cutting Thickness 6 mm – 1/4″

Description
Knife blade with 8mm cylindrical shaft for use with the RM (RigidMaterial) knife tool. 2 times 30 degrees angle. Can cut up to about 5-6mm thick materials.

Cutting Info
Material Thickness Method
Adhesive (decal) vinyl Standard thickness Through
Clear vinyl PVC < 0.4mm Static
Corrugated plastic < 5mm Static
Display carton Solid board Static
Flexible PVC 0.4-1.0mm Static
Flexo clicheés, unprocessed (Cyrel®) Static
Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Static
Lenticular display panels Static
Magnetic foil Static
Polycarbonate, PC (Lexan®) < 1mm Static
Polypropylene (plastic) < 2mm Static
