iEcho E13 Carbide Double-edged Drag Knife Blades
China MAISI Blades supplies iEcho carbide inserts and milling cutters, production, manufacturing, wholesale, sales Amazon Alibaba AliExpress store unit price catalog sales list pdf
Request A Quote

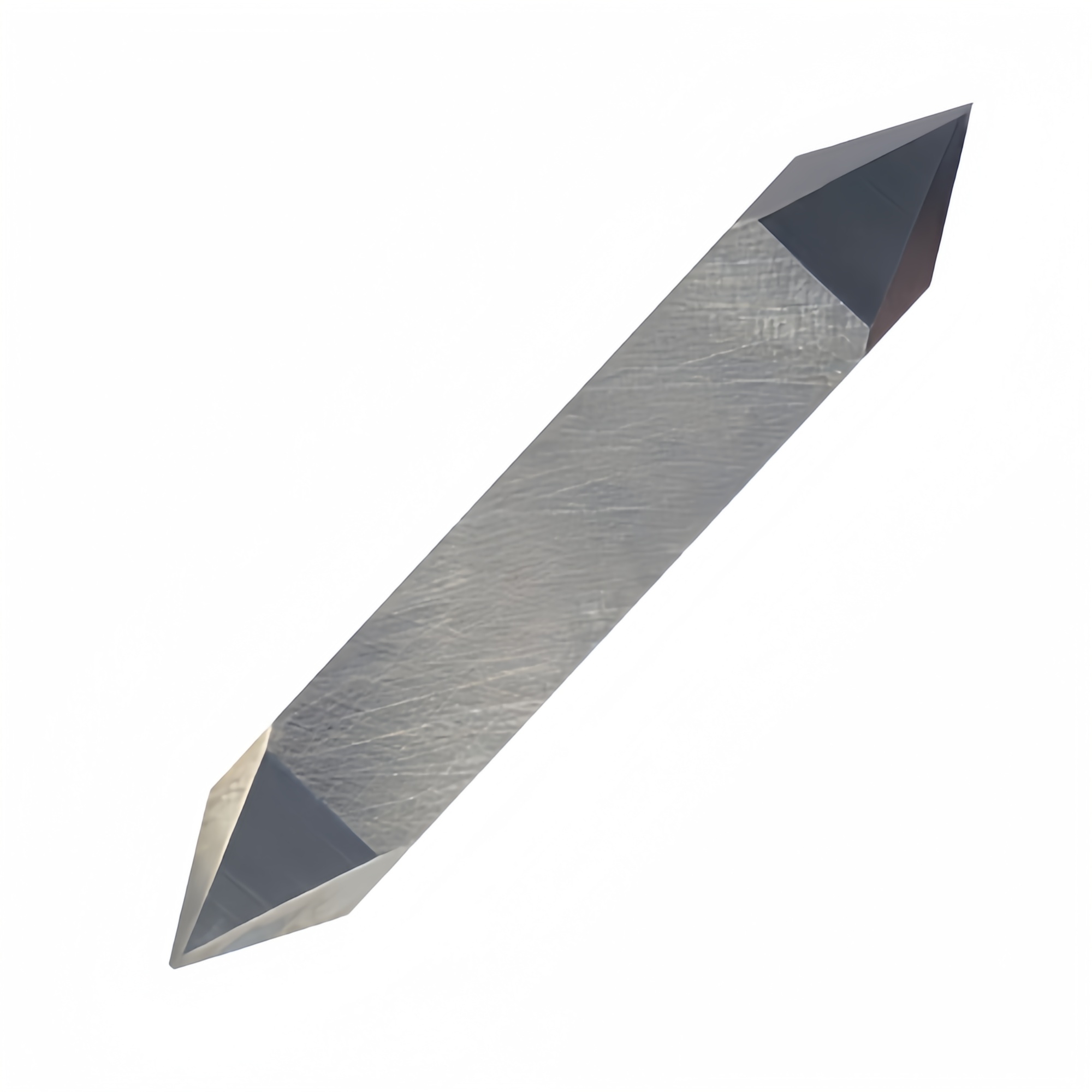

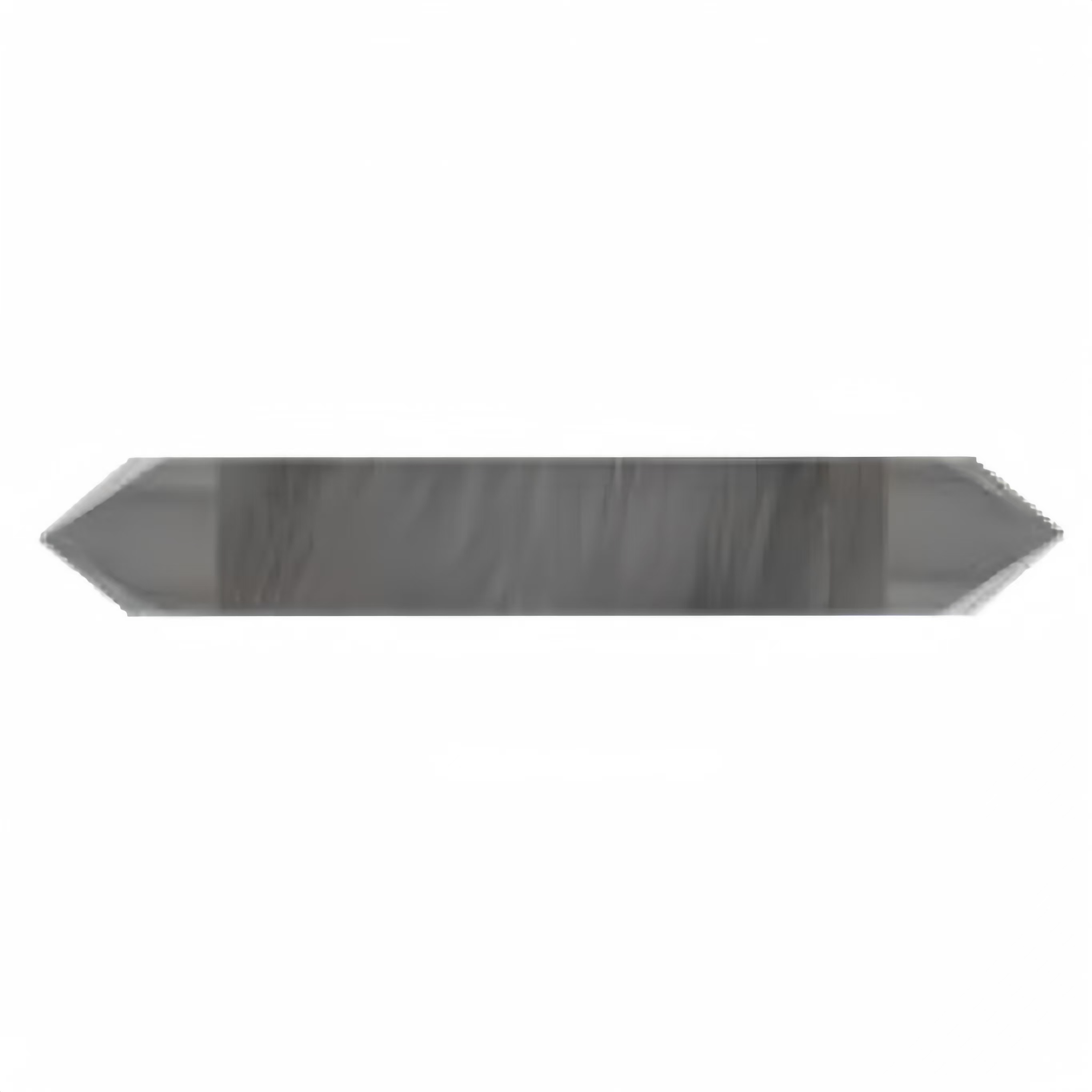

iEcho E13 Carbide Double-edged Drag Knife Blades
Specifications
Total length 50mm
Width 8 mm
Thickness 1.5 mm
Max. Cutting Depth 6.9 mm
Cutting Angle 60°
Description: E13 Two-tip Doubled-edged Drag Blade is like the Z11 but with twice the cutting capacity and is designed to cut an array of substrates from PVC banner and soft foams to wood up to 6.9mm thick.
Recommended Material: PVC Banner, Polypropylene Materials, Polycarbonate, Folding Carton, Vinyl, Adhesive Vinyls, Reflective Vinyls, Hard/Soft Foam, Plastics, Canvas, Magnetic Foil, Polyester Fabric, Tarpaulin, Corrugate, Adhesive Products, Woods, Paper Products
Cutting Method:
Knife, Through Cut
Max Material Thickness:
7mm
Replacement for:
TC knife blade XZ0013 BT-2362 AXYZ 26082,iEcho E13,Comagrav E13,ZUND 3910321 Z13,Atom 01033925,Dyss AGDYB140,Esko Kongsberg 42441204 G42441204 BLD-DF213 i-313 i-311 T13,Blackman & White BW13
Main model：
E1,E2,E13,E16,E17,E18,E18L,E21,E25,E26,E28,E28L,E41,E42,E50,E51,E52,E55,E61,E62,E71,E64,E71-2,E64-2,E64-3,E25,E66,E66-2,W1,E61-2,E73,E26-2,AY1L*3.175,E18C,E18LC,E16C,E17C,E21C,E46C,.E50,E51,E52,E55.....
Total length 50mm
Width 8 mm
Thickness 1.5 mm
Max. Cutting Depth 6.9 mm
Cutting Angle 60°
Description: E13 Two-tip Doubled-edged Drag Blade is like the Z11 but with twice the cutting capacity and is designed to cut an array of substrates from PVC banner and soft foams to wood up to 6.9mm thick.
Recommended Material: PVC Banner, Polypropylene Materials, Polycarbonate, Folding Carton, Vinyl, Adhesive Vinyls, Reflective Vinyls, Hard/Soft Foam, Plastics, Canvas, Magnetic Foil, Polyester Fabric, Tarpaulin, Corrugate, Adhesive Products, Woods, Paper Products
Cutting Method:
Knife, Through Cut
Max Material Thickness:
7mm
Replacement for:
TC knife blade XZ0013 BT-2362 AXYZ 26082,iEcho E13,Comagrav E13,ZUND 3910321 Z13,Atom 01033925,Dyss AGDYB140,Esko Kongsberg 42441204 G42441204 BLD-DF213 i-313 i-311 T13,Blackman & White BW13
Main model：
E1,E2,E13,E16,E17,E18,E18L,E21,E25,E26,E28,E28L,E41,E42,E50,E51,E52,E55,E61,E62,E71,E64,E71-2,E64-2,E64-3,E25,E66,E66-2,W1,E61-2,E73,E26-2,AY1L*3.175,E18C,E18LC,E16C,E17C,E21C,E46C,.E50,E51,E52,E55.....
-
