Esko Kongsberg BLD-SF290 Flat,pulling and oscillating Knife Blades G34094581
Esko Kongsberg Tungsten Carbide - VHM -Hard Metal Flat,pulling and oscillating Knife Blades BLD-SF290 G34094581 Scian Ar Ais Nóż z powrotem Messerklingen Лезвия ножа Lames de couteau 나이프 블레이드 Mesbladen Čepele nožů Lame de cuțit Pisau Lâminas de faca ナイフの刃 Оштрице ножа Čepele nožov Rezila nožev ใบมีด…

Request A Quote

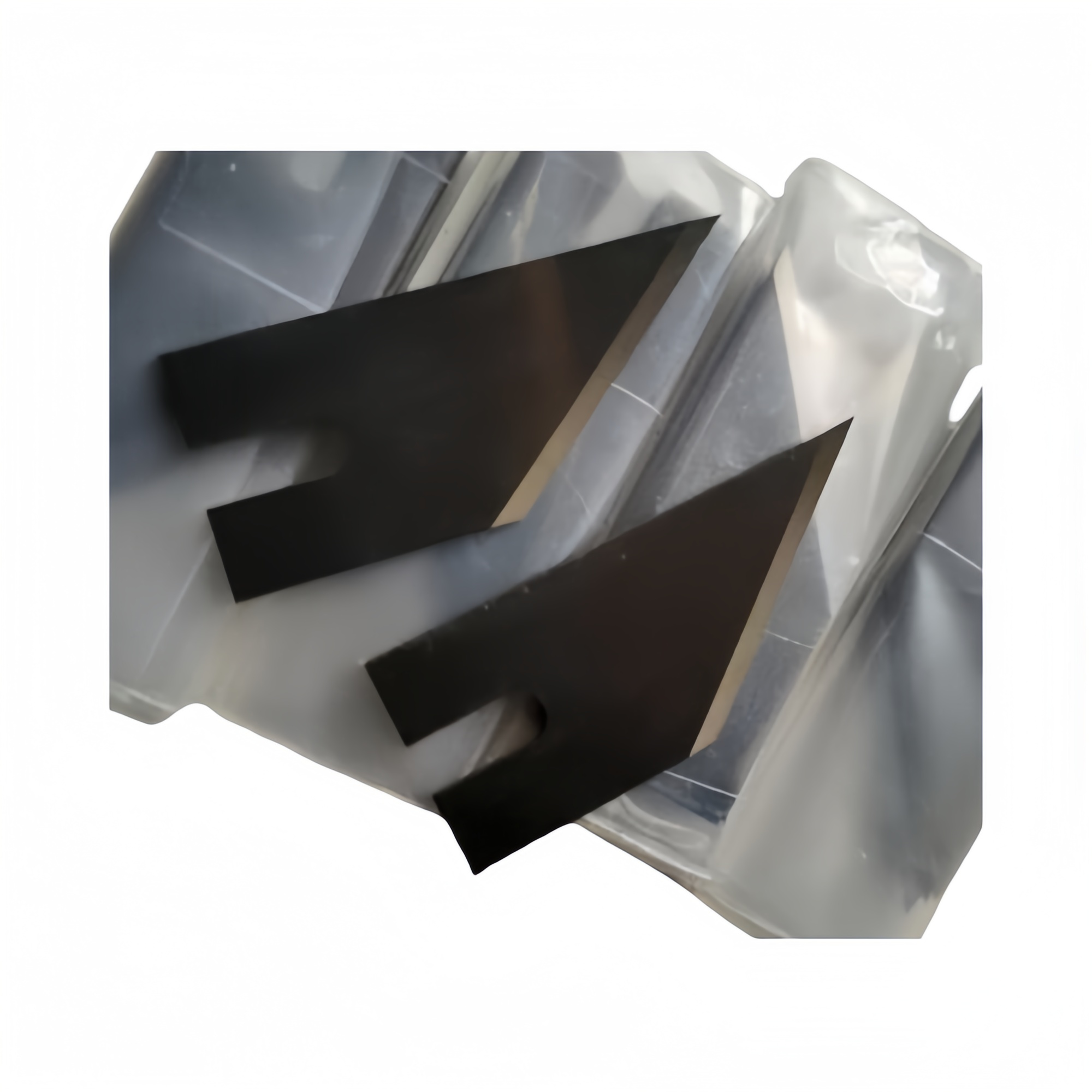

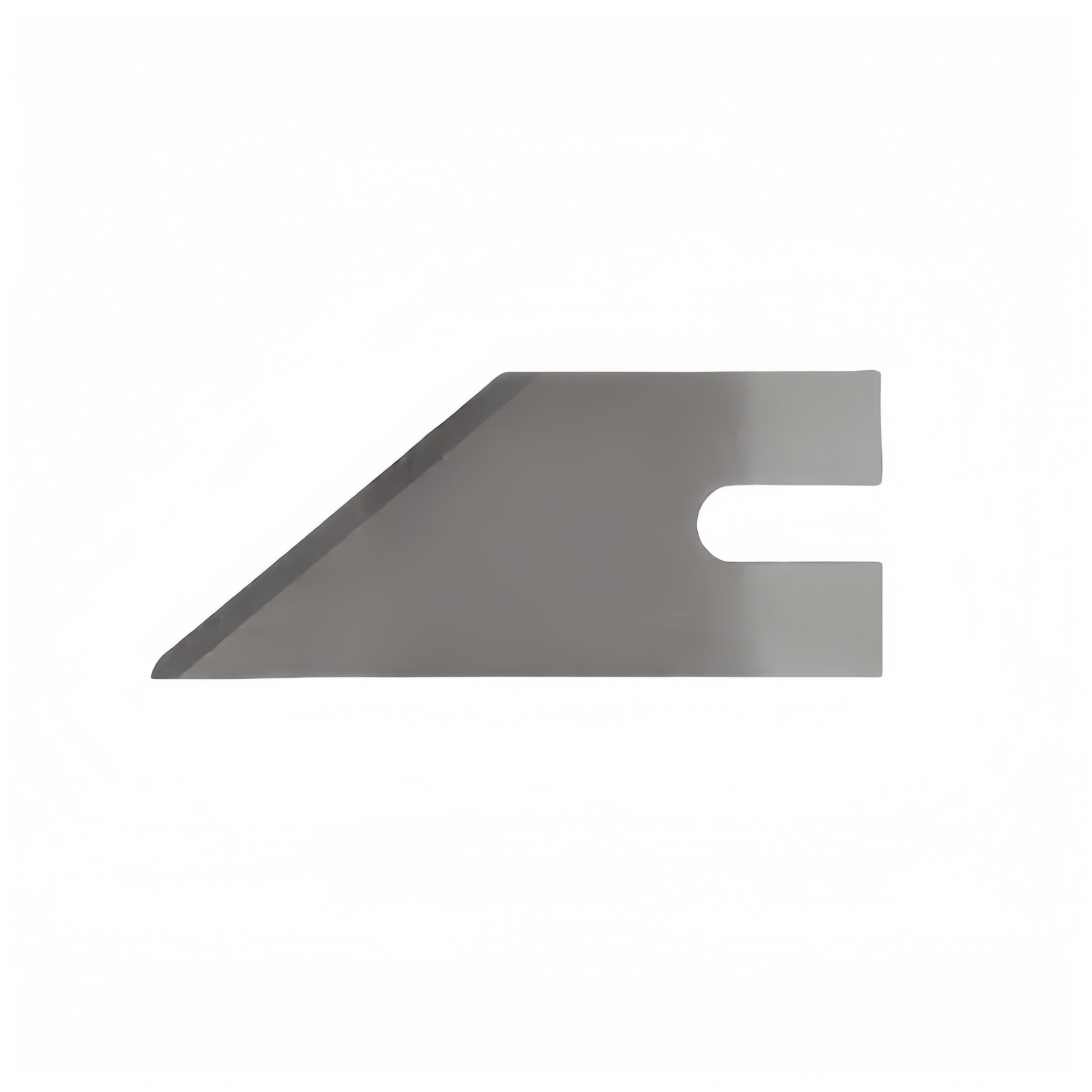

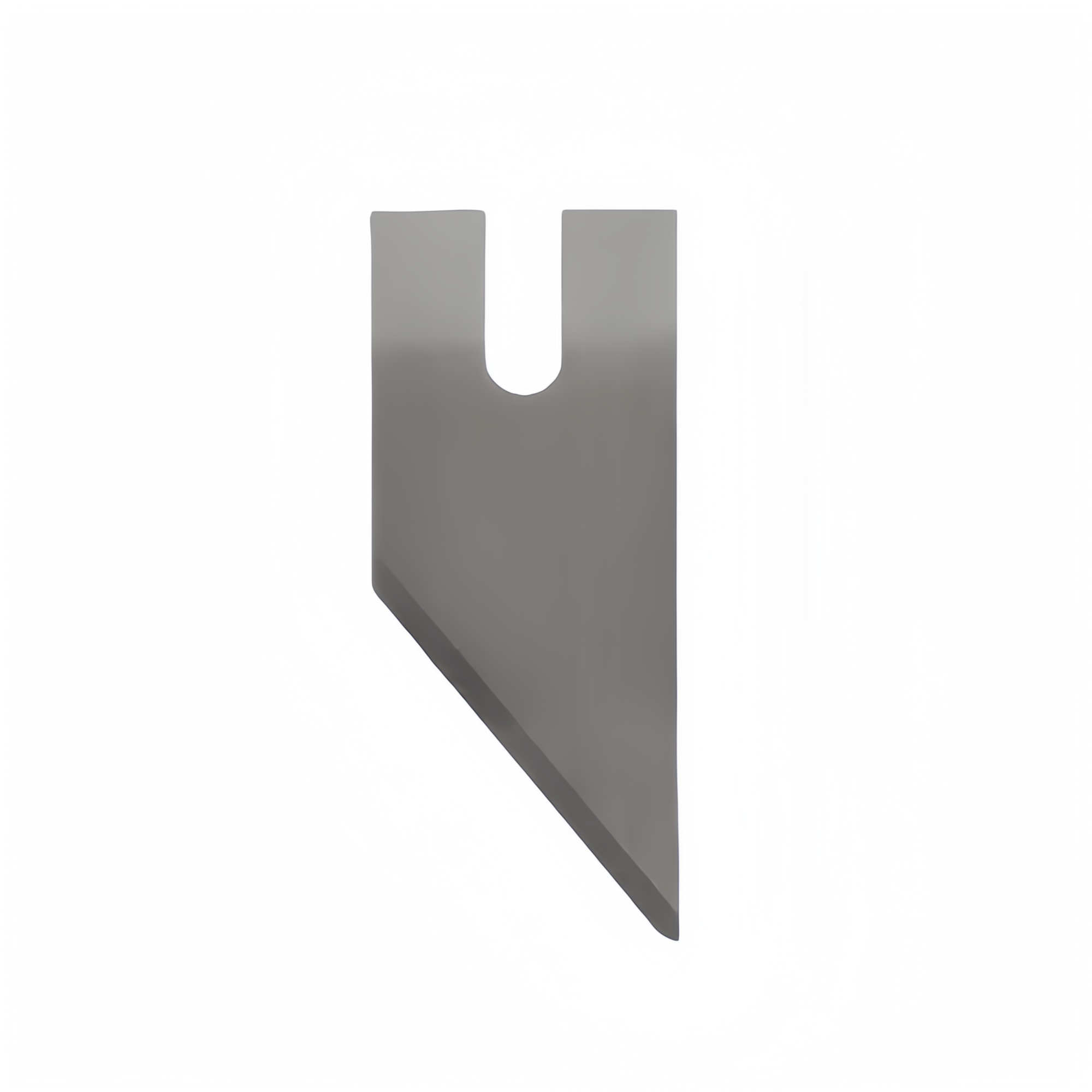

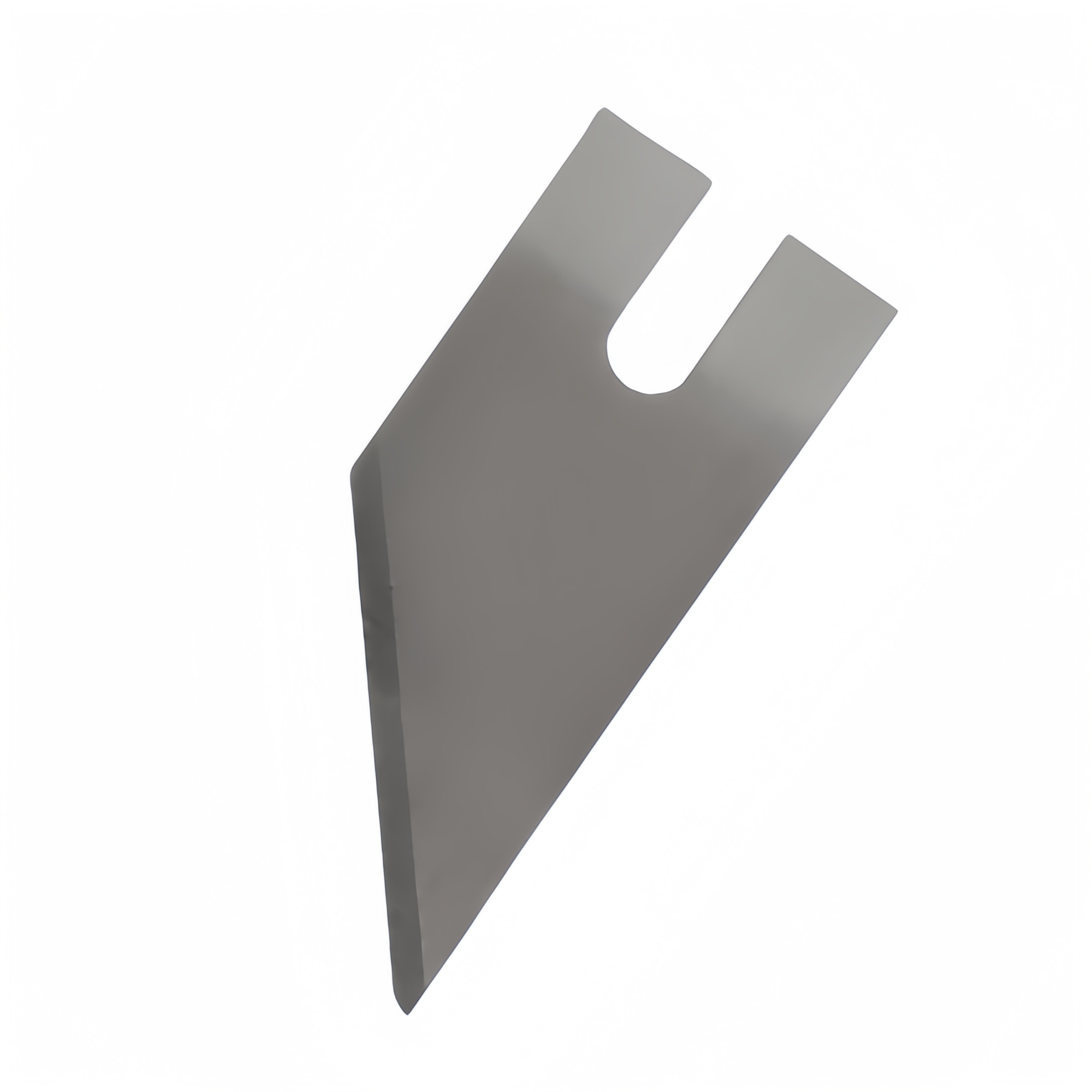

Esko Kongsberg BLD-SF290 Flat,pulling and oscillating Knife Blades G34094581
L Lenght 40 mm
W Width 17 mm
C Max. Cutting Thickness 16 mm – 5/8″

Description Specially made blade for the RB90-16 insert tool.
Works well in materials such as fluted core boards and triple wall corrugated.
Made from a special Tungsten carbide alloy, To extend lifetime. Thickness 0.9mm – .035
Requirements To use BLD-SF290 on your Kongsberg PCS table, You need one of the following configurations.
  •  RB90 tool insert on XL/XN/X adapter N/A
Cutting Info Material Sub Category Thickness Method
Corrugated Double wall EB,BC…(5-7mm) recycled Static
Corrugated Triple wall Triple Virgin (7-16mm) Static
Corrugated plastic Corrugated plastic < 16mm Static
Foam board soft (PUR) Foam board soft (PUR) < 12mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm Static
Lenticular display panels Lenticular display panels < 5mm Static

If you have more questions to know ,please contact us .
