Esko Kongsberg BLD-TZ511 V-cut Knife blade G42448589 – Replacement
Esko no. BLD-TZ511, G42448589 Tungsten carbide trapezoid shaped knife blade V-notch KNIFE Manufacturer Supplier Seller Wholesaler Sale Unit Price List
Request A Quote

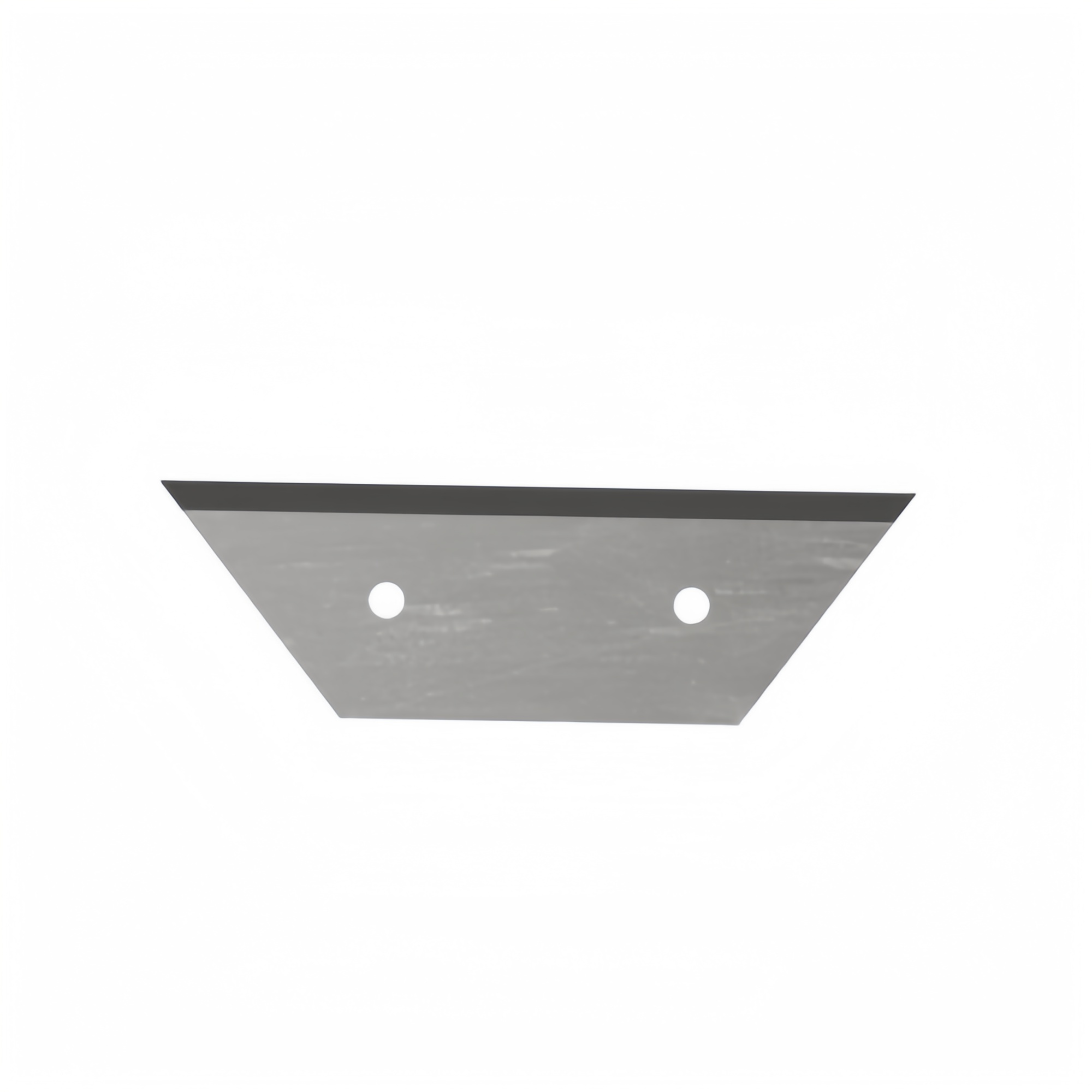

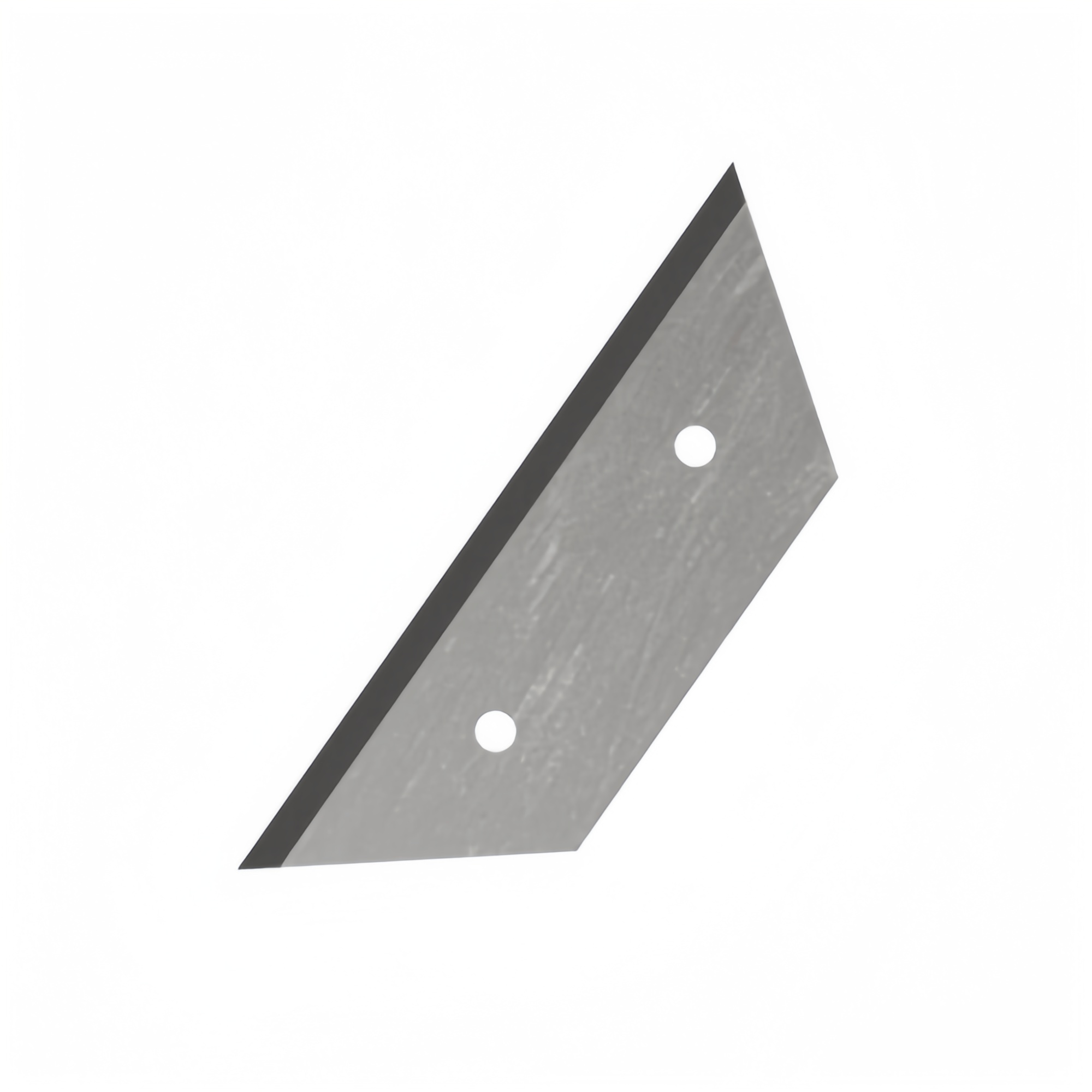

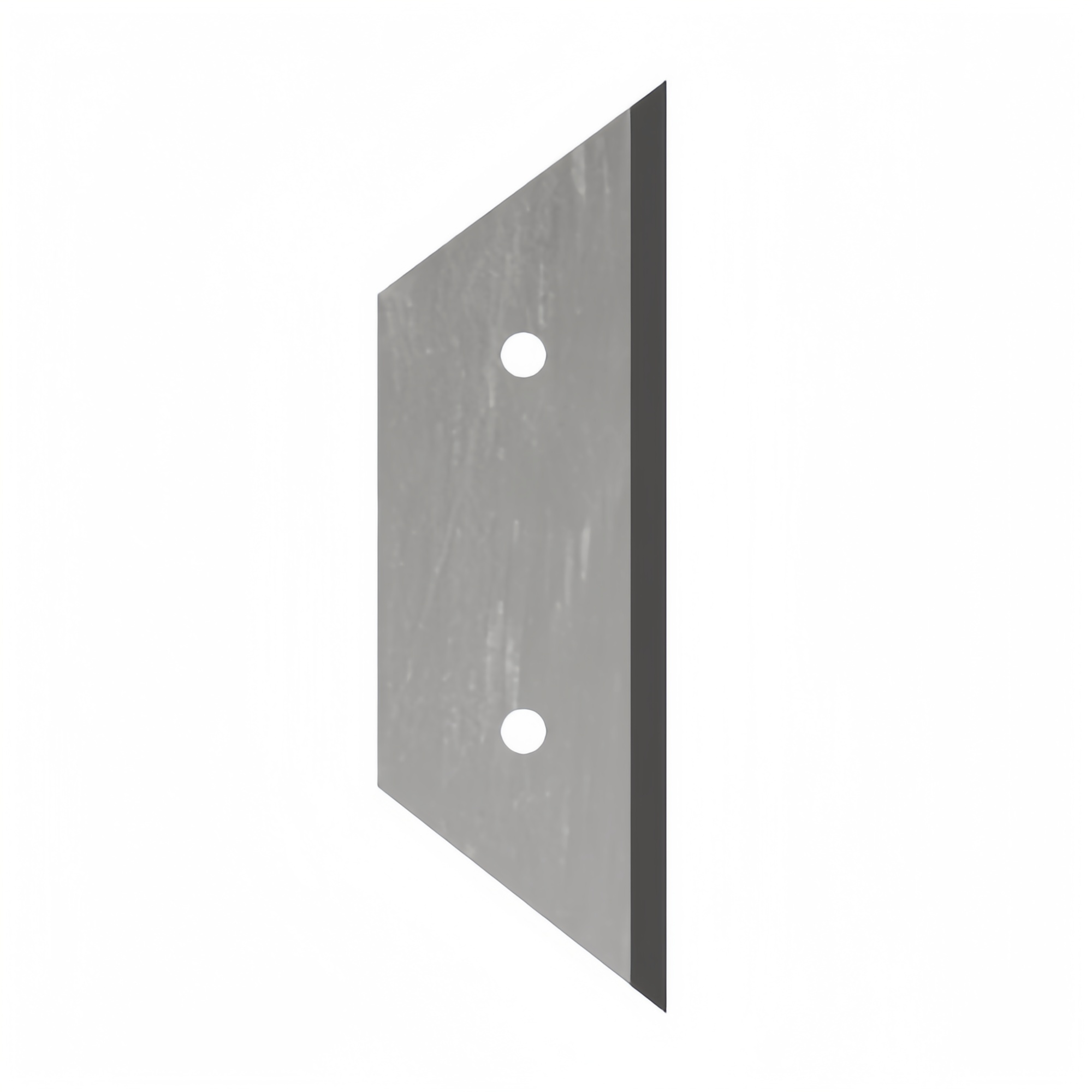

Esko Kongsberg BLD-TZ511 V-cut Knife blade G42448589 – Replacement

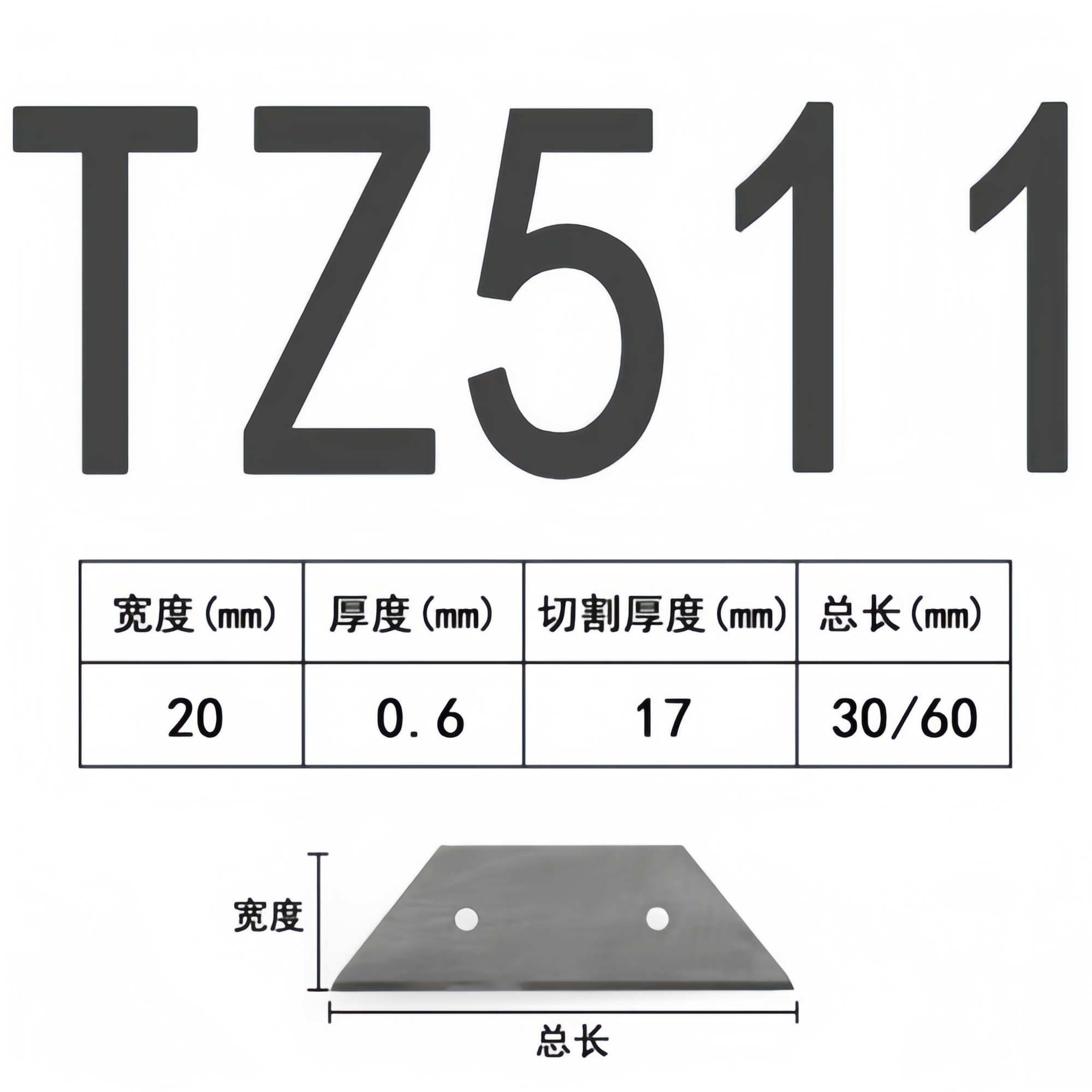

L Lenght 60 mm
W Width 20 mm
C Max. Cutting Thickness 17 mm – 43/64″
Description Very good blade for V-notch cutting through materials such as Re-board,
X board and triple wall corrugated. Cuts materials up to about 17mm.
Made from a special Tungsten carbide alloy, To extend cutting cycles. Thickness 0.6mm – .024
Requirements To use BLD-TZ511 on your Kongsberg PCS table, You need one of the following configurations.
  •  PowerHead on XL/XN/X/V with V-Notch tool holder
  •  HD/Dual HD unit on C/XP with V-Notch tool holder
Cutting Info Material Sub Category Thickness Method
Corrugated Triple wall Triple recyc (7-16mm) V-notch
Corrugated plastic Corrugated plastic < 12mm V-notch
Corrugated plastic Corrugated plastic < 5mm Static
Foam board soft (PUR) Foam board soft (PUR) < 12mm V-notch
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm V-notch
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm V-notch

If you have more questions to know ,please contact us .
