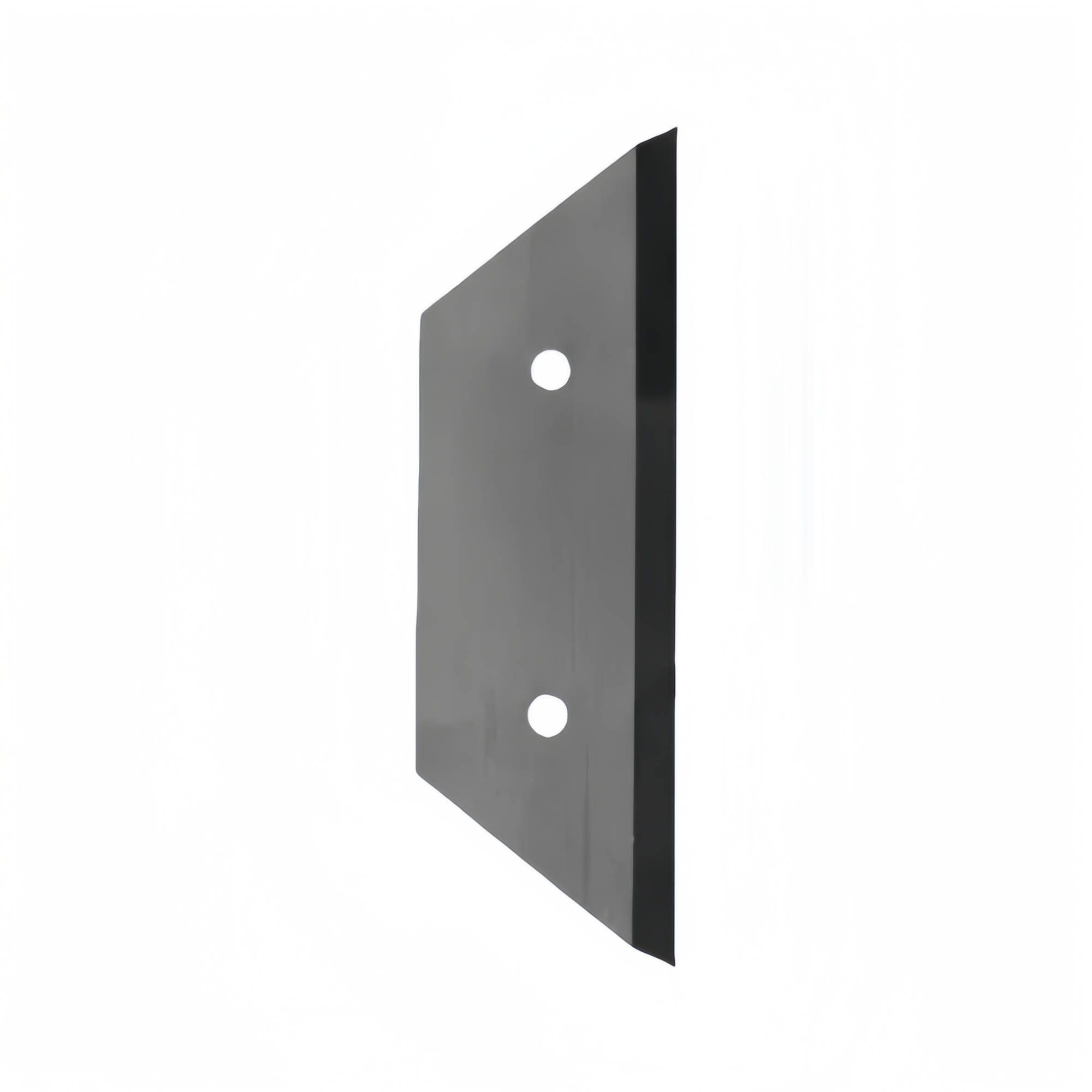

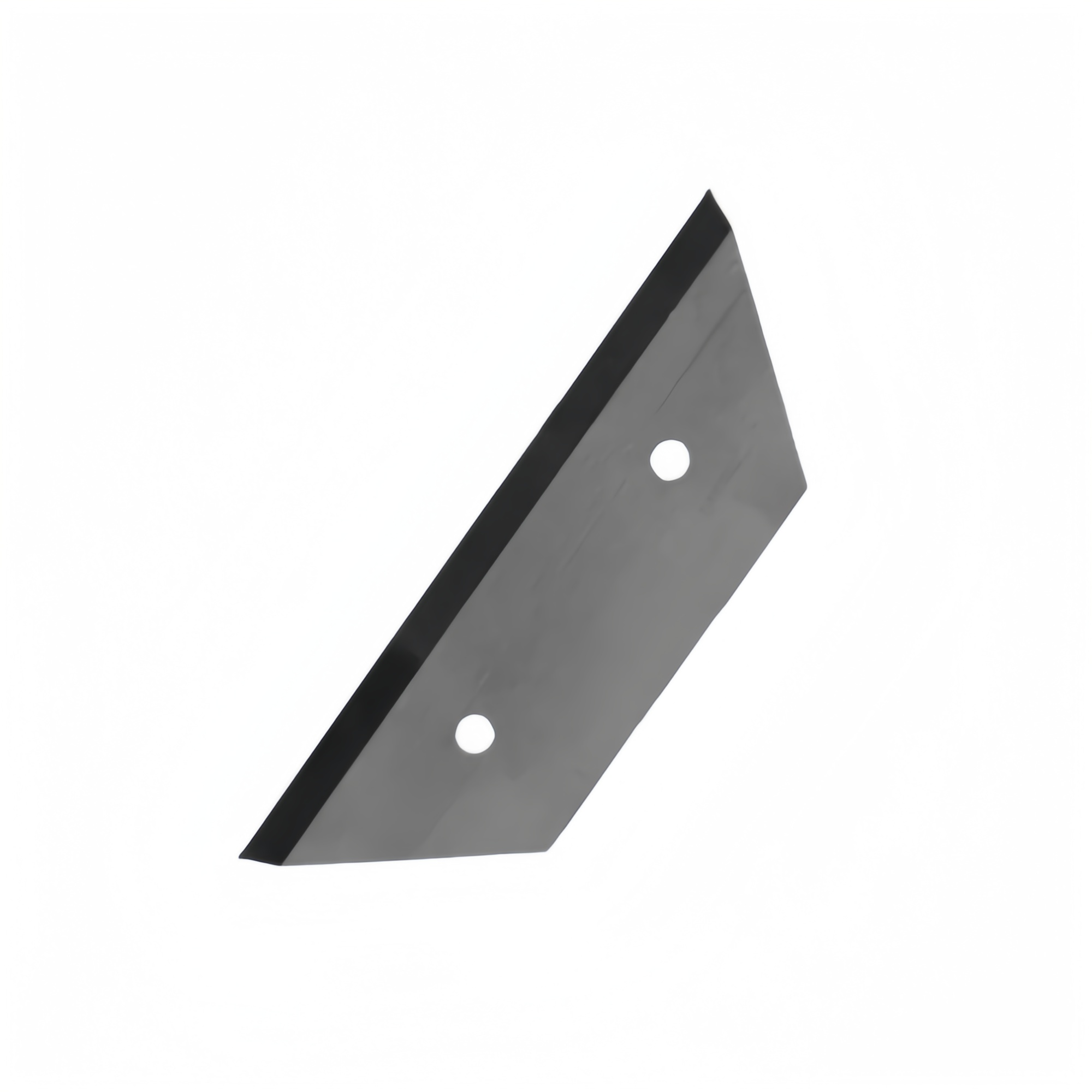

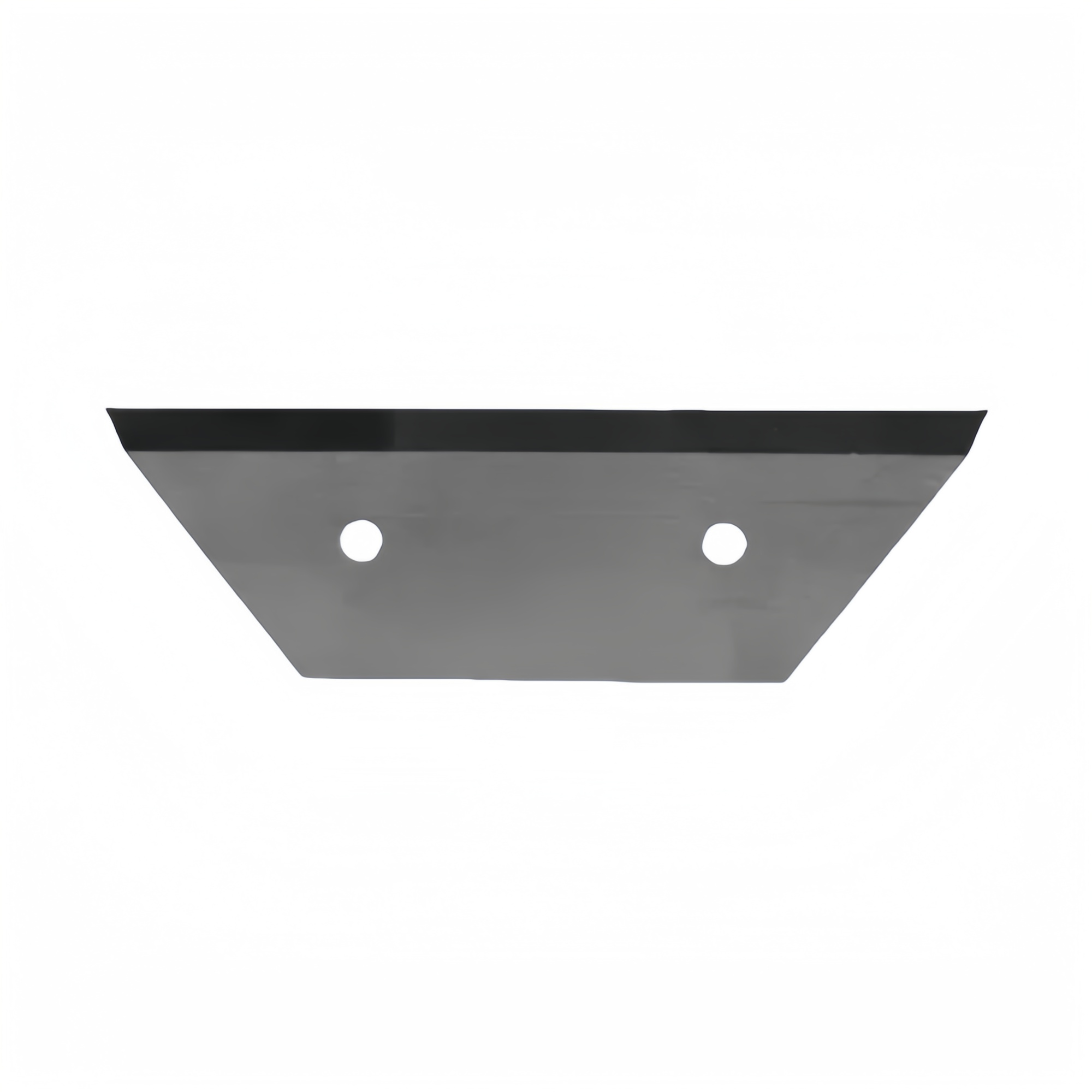

Esko Kongsberg BLD-TZ512 V-cut Knife Blade– Replacement

L Lenght 60 mm
W Width 20 mm
C Max. Cutting Thickness 17 mm – 43/64″

Description	Good blade for V-notch and straight cutting with the HD-knife tool through materials such as
	Re-board, X-board and triple wall corrugated. Made from a special tungsten carbide alloy,
	To extend lifetime. Thickness 0,9m

Requirements	To use BLD-TZ512 on your Kongsberg PCS table, You need one of the following configurations.
	• PowerHead on XL/XN/X/V with V-Notch tool holder/HD knife tool 17
	• HD/Dual HD unit on C/XP with V-Notch tool holder/HD knife tool 17

Cutting Info	Material	Sub Category	Thickness	Method
	Corrugated	Double wall	EB,BC…(5-7mm) recycled	Static
	Corrugated	Triple wall	Triple recyc (7-16mm)	Static
	Corrugated plastic	Corrugated plastic	< 16mm	Static
	Foam board soft (PUR)	Foam board soft (PUR)	10-20mm	Static
	Foam board soft (PUR)	Foam board soft (PUR)	< 12mm	V-notch
	Foamed PVC / PS	Foamed PVC / PS (Forex®, Sintra®)	< 5mm	Static
	Foamed PVC / PS	Foamed PVC / PS (Forex®, Sintra®)	< 5mm	V-notch
	Honeycomb / Fluted core board	Honeycomb- fluted core board	16mm	Static
	Honeycomb / Fluted core board	Honeycomb- fluted core board	16mm	V-notch
	Lenticular display panels	Lenticular display panels	< 5mm	Static
